Ultrasonic Cut Plastic



Can cut thickness from 0.01-2 mm without damaging the work. The work comes out beautifully, no fluff, no broken threads. Can cut straight comfortably by dragging the cutting head.

The machine is highly efficient, using high frequency ultrasonic cutting, so the work is of high quality, helping you reduce production costs significantly, saving both time and labor costs.

Cut artificial leather, PVC, PU, cotton, velvet for making sofas, furniture, mattresses, car seat covers, etc. No pilling, no broken threads.

Easy to install, uses 220V 50Hz home electricity.

1 set of ultrasonic fabric cutting machines, size 42x32x18 cm, can be placed on the table, saving working space.



Specification : Specification of ultrasonic plastic cutting machine

Model	B40-500
Rated Power	500W
Input voltage	220V
Input frequency	50Hz
Output power	≤ 500W
Export carton size	42*32*18CM (horizontal)
Generator cabinet size	36*26*12CM (horizontal)
Net weight	12kg
Generator suitabel for Ultrasonic frequency range	40KHZ
Handheld gun Ceramic transducer type	40KHZ Fabric special type
Real-time display in the operation panel	Amplitude, frequency tamplitude, frequency display
Protection mode	Internally installed circuit Built-in circuit to prevent over temperature and overload
Cable length	3M
Hardness of the blade	60 degree HRC Roche hardness
Material of horn	Die steel
Cutting thickness	0.01-2mm
Usage	All kinds of fabric cutting

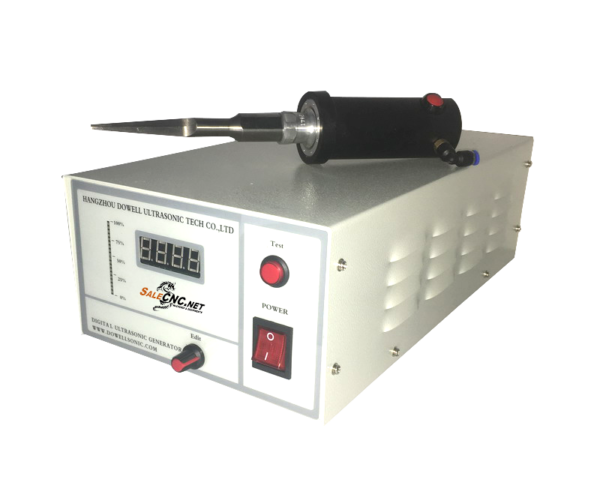

Ultrasonic Fabric Cutting Machine B40-500 Ultrasonic fabric cutting machine, thickness 0.01-2mm

Easily cut leather fabric, all types of fabric, no pilling, no thread breakage with ultrasonic fabric cutting machine.

Cutting head : Cutting head





Aluminium alloy handle : Aluminium alloy handle

Application of Ultrasonic Cut Plastic in Industry

This technology is used in many industries such as:

1. Packaging industry

Used to cut the plastic edges of packaging to make it neat and seal tightly.

2. Electronics industry

Used to cut plastic sheets that are components of electronic devices, such as circuit boards or phone cases.

3. Automotive industry

Used for cutting plastic parts used in automobiles, such as console panels and interior trim parts.

4. Medical industry

Used in the manufacturing process of medical devices such as syringes and drug containers.
