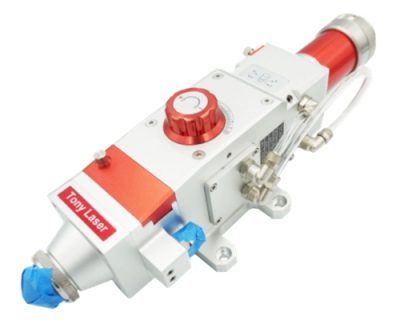

Fiber laser cutting head BM114-4-6KW Raytool + Yaskawa Motor

High withstand power: with D37 optical lens set,Power up to 6KW, easy to cut thick plate.High efficiency cooling: collimators and focusing lenses have cooling structures.At the same time, the cooling airflow of the nozzle is increased to protect the nozzle effectively.Ceramic body for extended working hours.

Light and efficient: only about 5.6KG in weight, compact structure,Reduce machine tool mechanical requirements.Large aperture: through aperture 35MM,Effectively reduce stray light interference and ensure cutting quality and service life.Auto-focusing: Auto-focusing to reduce human intervention,Focus speed 10M/MIN, repeat accuracy 50MM.High speed cutting: 25MM carbon steel plate pre-piercing time <3S@3000W, greatly improve cutting efficiency.
